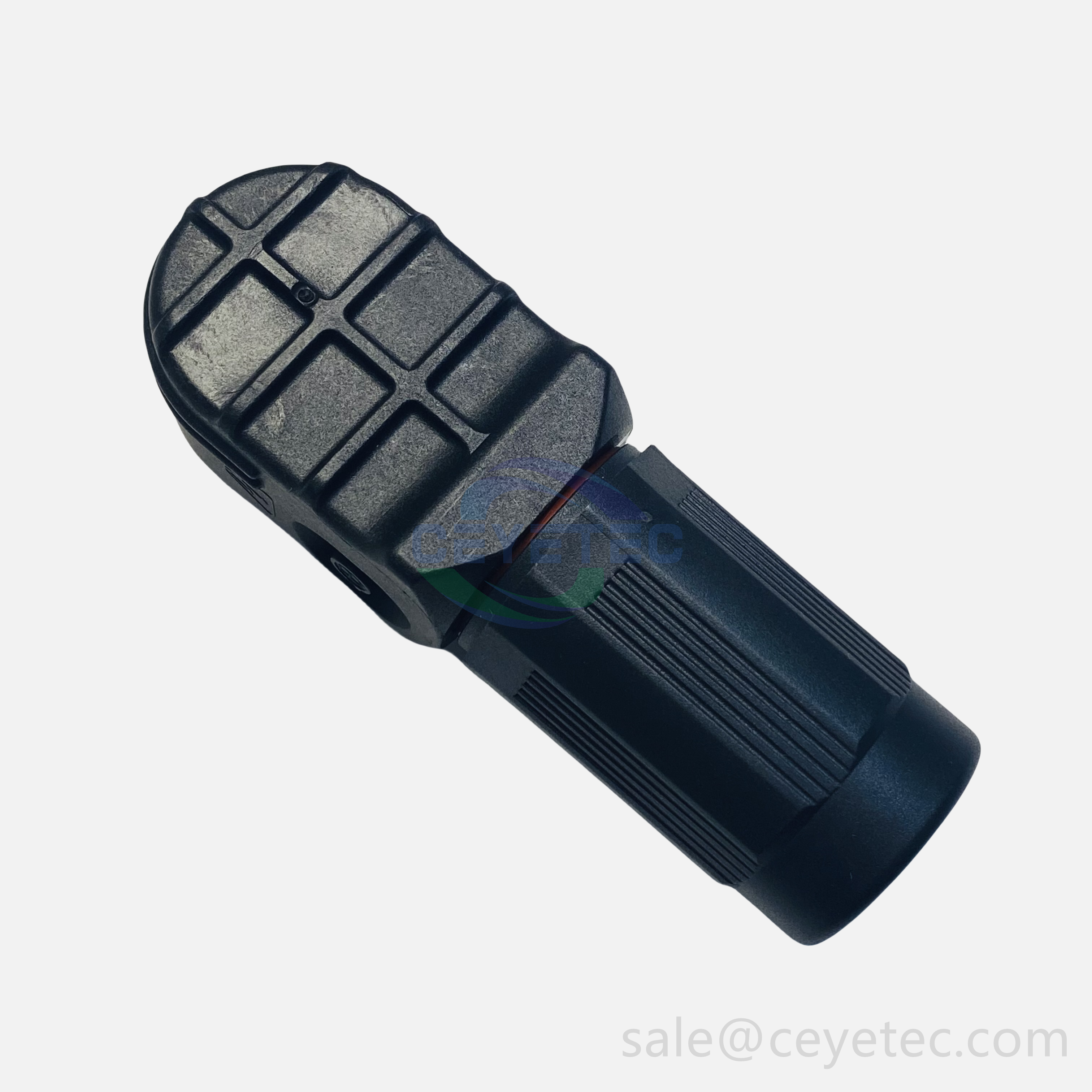

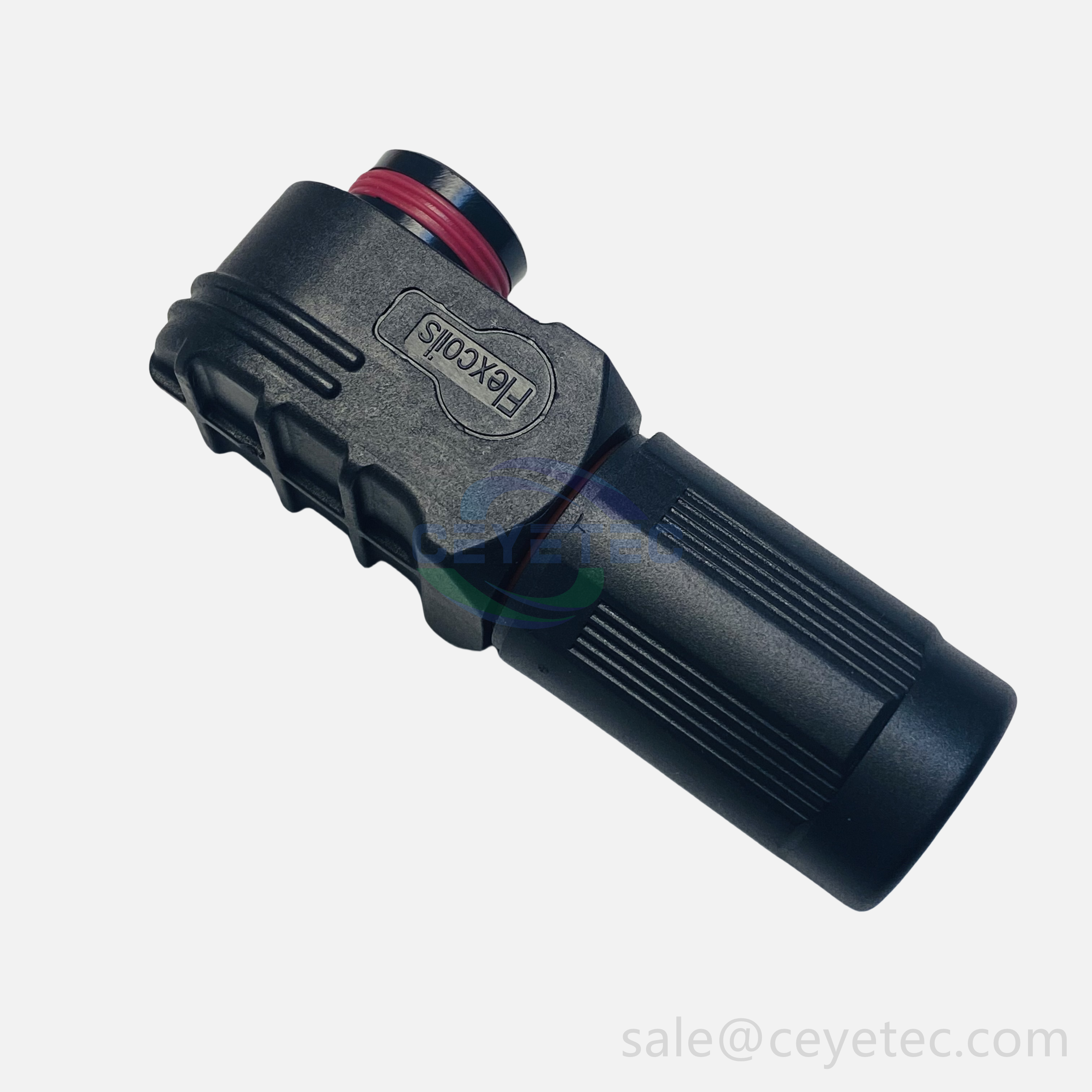

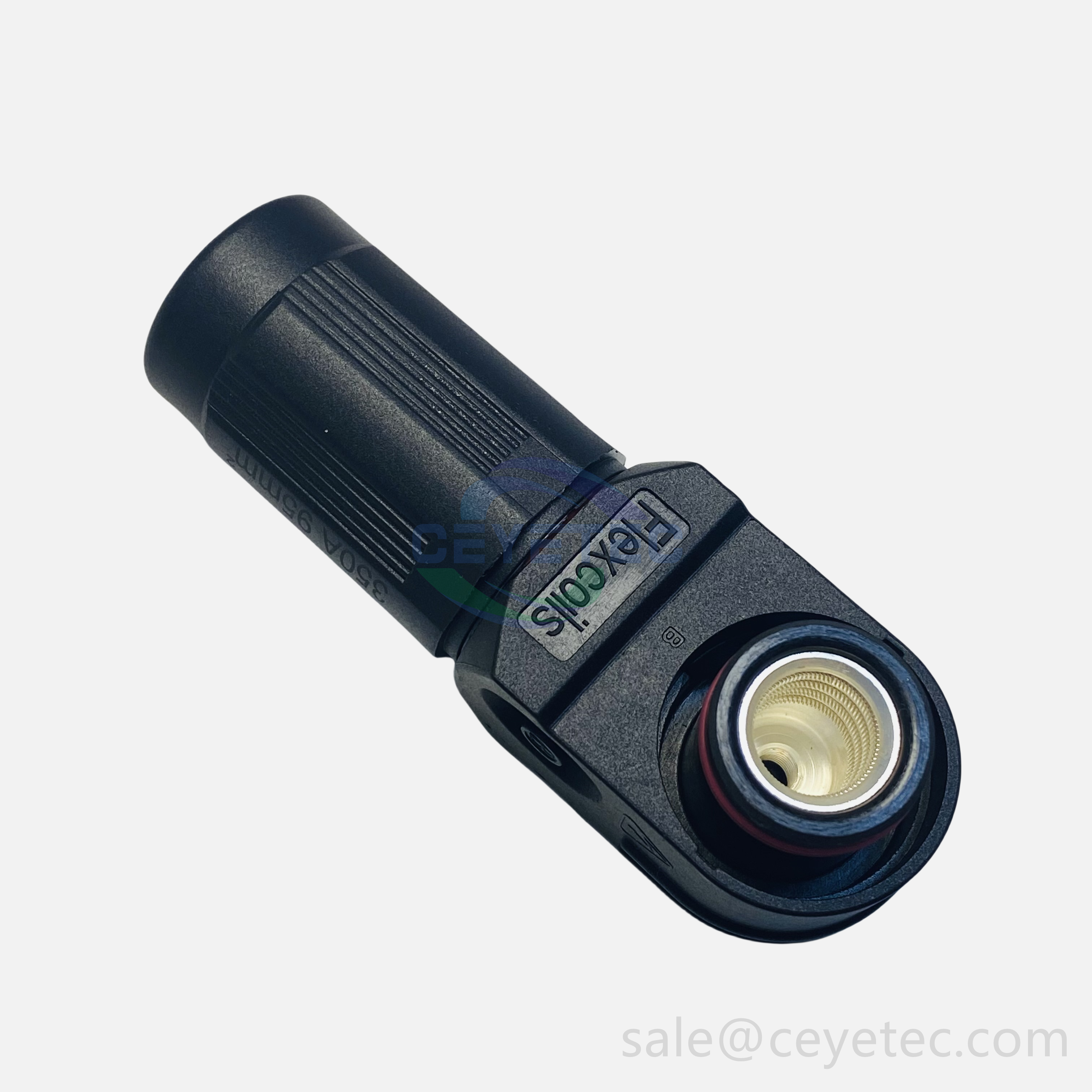

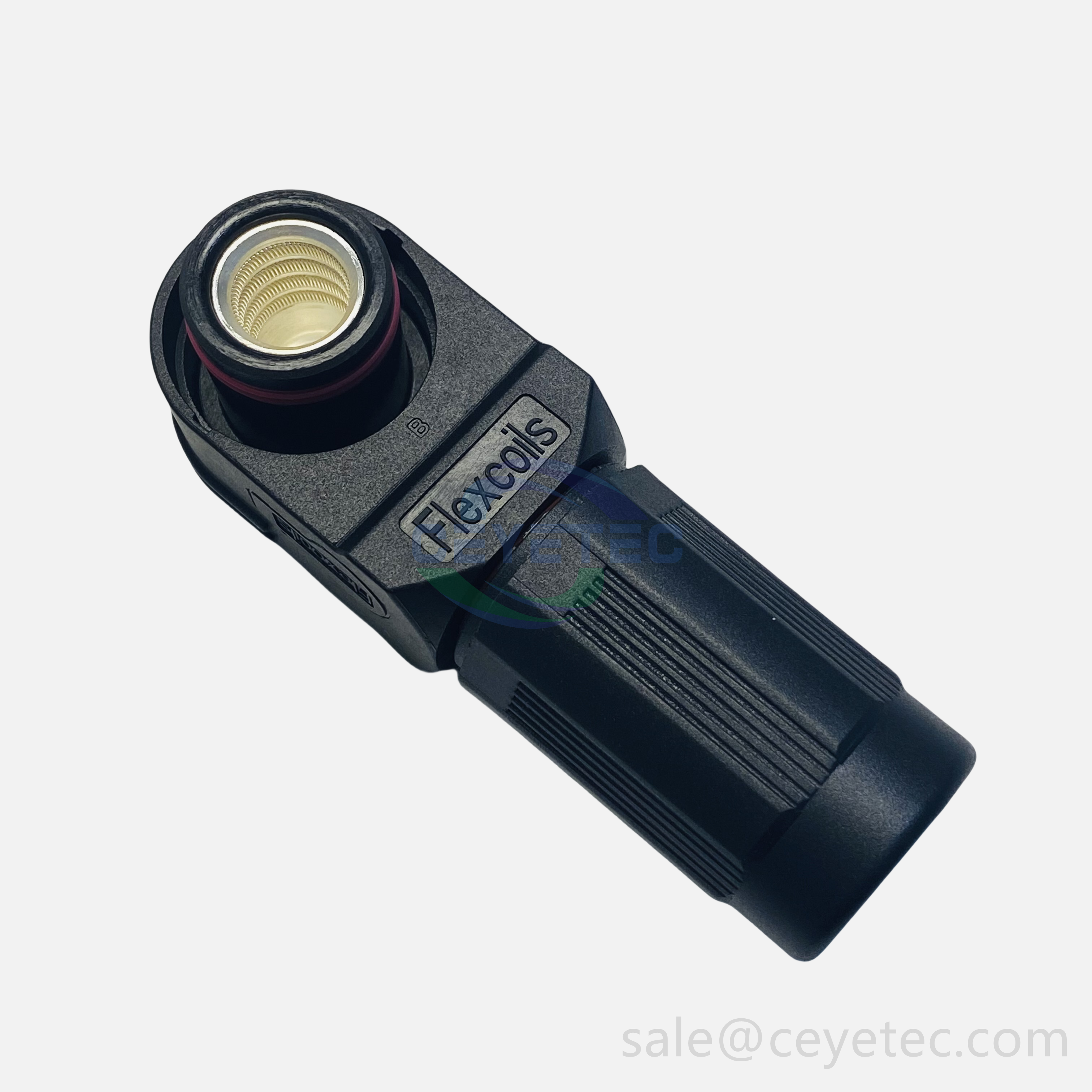

Energy Battery Storage Connector 350A 12mm Plug Right Angled 95mm² Cable Black
Attributes:
Female, Plug, Right Angle, 350A, 95mm2, 12mm,Black
Features:
Energy storage connectors are mainly used to connect battery modules of energy storage systems in series, making it safer for workers to install energy storage systems (ESS).
They are widely used in energy storage, new automotive, and other industries.
Female, Plug, Right Angle, 350A, 95mm2, 12mm,Black
Features:
Energy storage connectors are mainly used to connect battery modules of energy storage systems in series, making it safer for workers to install energy storage systems (ESS).
They are widely used in energy storage, new automotive, and other industries.
Basic Specifications
| Energy Storage Connector Features | |
| Current Rating: | 60A-500A |
| Voltage Rating: | 1000Vdc Max. |
| Dielectric Withstanding Voltage: | 2500V |
| Contact Resistance: | 0.2mΩ Max |
| Insulation Resistance: | 1000MΩ |
| IP Level: | IP67 |
| Temperature Rating: | -40 °C ~ +105 °C |
| Flammability: | UL94V-0 |
| Lock: | Tool-Free Mechanical Locking |
| High Cycles Durability: | 3000 Cycles Min |
| RoHS | RoHS complaint |
| Application: | BMS/Energy Storage |
| EV/HEV | |
| Rail Mass Transit | |
| Process Control/Automation | |
|
Heavy Equipment |
|
Shipment
Loading Port: Shenzhen, China
Sample Delivery: 3-5days after order confirmed
Mass Production Delivery:10-15 days after order confirmed
The excellent after-sale service team provide to you with broader service platform. Please contact us anytime, if you have any questions or requirements.
Payment
Payment Term: Bank Transfer, Alipay, PayPal, Credit Card.
