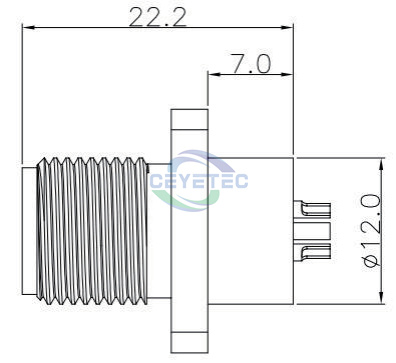

3Pin M12 Male Socket A Code Straight Flange Type Solder for 22AWG 24AWG 26AWG
Attributes:
Pin Number: 3Pin 4pin 5pin 6pin 8pin 12pin 17pin
Coding: A Code B Code D Code
Gender: Male
Orientation: Straight
Mounting Feature: Rear Mount Solder for 22AWG 24AWG 26AWG
Features:
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications
for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for wash down and corrosive environments.
Pin Number: 3Pin 4pin 5pin 6pin 8pin 12pin 17pin
Coding: A Code B Code D Code
Gender: Male
Orientation: Straight
Mounting Feature: Rear Mount Solder for 22AWG 24AWG 26AWG
Features:
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications
for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for wash down and corrosive environments.
Basic Specifications
| M Series | |
| Model Number | M12 |
| Type | Male Socket |
| Product name | M12 Connector |
| Contacts | 3Pin 4pin 5pin 6pin 8pin 12pin 17pin |
| Gender | Male |
| Code | A Code B Code D Code |
| Orientation | Straight |
| Connector type | Socket |
| Mounting Type | Flange Solder for 22AWG 24AWG 26AWG |
| Waterproof rate | IP67 |
| Material of contact | Copper |
| Temperature Range | -25~80℃ |
Related Products
Shipment
Loading Port: Shenzhen, China
Sample Delivery: 3-5days after order confirmed
Mass Production Delivery:10-15 days after order confirmed
The excellent after-sale service team provide to you with broader service platform. Please contact us anytime, if you have any questions or requirements.
Payment
Payment Term: Bank Transfer, Alipay, PayPal, Credit Card.
Packing
