What is a lock clip lock clip mechanism for UFL connector

When the connector is used for automotive. And vibrations will be a problem. If the connectors become loose while the car is in motion, it can lead to very serious consequences. Based on this, we designed a plastic lock clip mechanism to secure the UFL connector, ensuring that the connector does not loosen in vibrating working environments.

How two lock on lock clip on the U.FL connectors

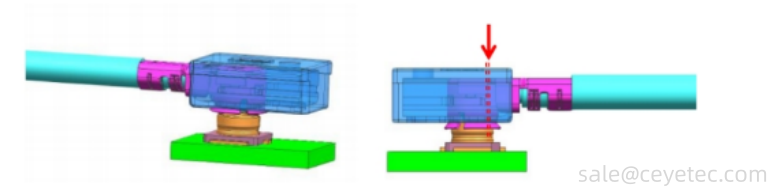

Step 1:

Push the latch into the UFL connector and align the connector with the connector on the PCB. A click sound indicates successful alignment.

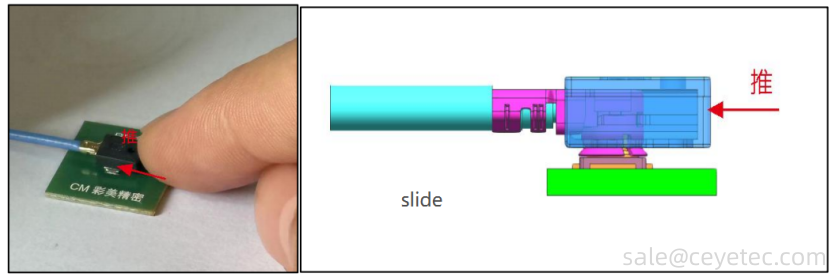

Step 2:

After the connector plug and socket are successfully mated, slide the lock clips in as shown in the diagram

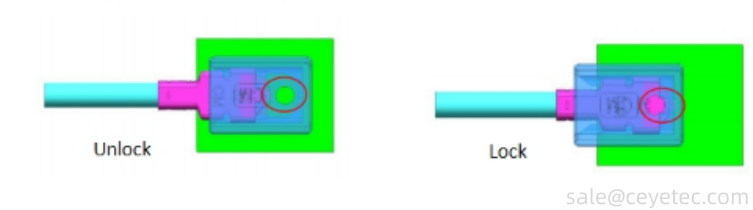

Step3:

After slide the lock clip, As shown in the figure, the latch is now in the locked state.

The connector’s simple and easy-to-understand one action locking and unlocking mechanism (sliding the lock cover back and forth) and the “check window” function that allows the user to visually check the lock status enhance the reliability of the lock during handling.
